DGT4X稱重變送器/壓力變送器
DGT4X稱重變送器/壓力變送器可選通訊：
PROFINET I/O | ETHERNET/IP | ETHERCAT | MODBUS TCP | CANOPEN | DEVICENET | PROFIBUS | ANALOG OUTPUT | RS485
全國服務熱線：
0551-65222217DGT4X - 稱重變送器/壓力變送器

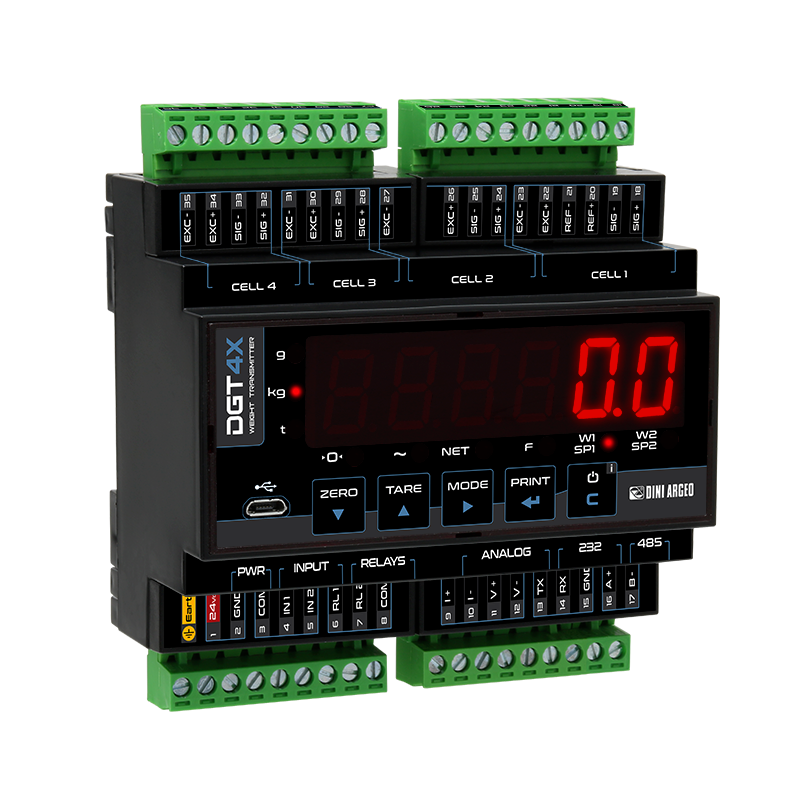

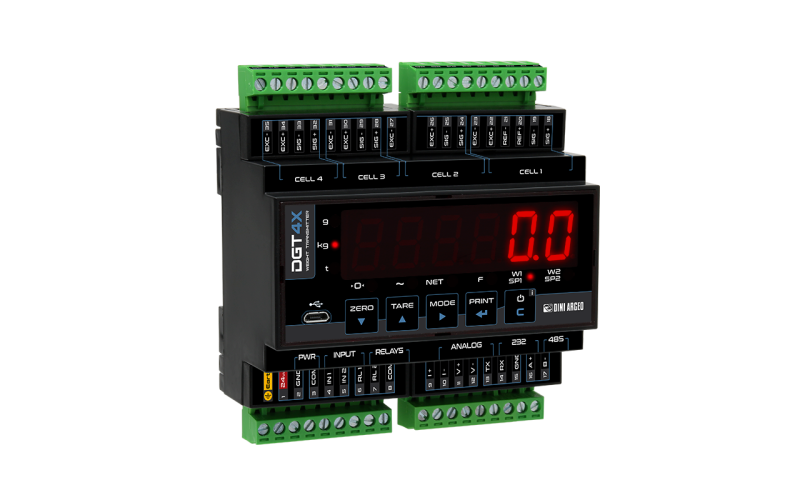

DGT4X - 稱重/壓力變送器Weight transmitter for weight transfer to PLC via fieldbus, analog output or RS485.
It allows the reading and diagnostics of each load cell or each connected scale.
| DGT4X稱重變送器/壓力變送器可選通訊 |
PROFINET I/O | ETHERNET/IP | ETHERCAT | MODBUS TCP | CANOPEN | DEVICENET | PROFIBUS | ANALOG OUTPUT | RS485
| WEB管理 |
集成 Web 服務器作為配置、診斷和數據備份的標準
。
| DGT4X變送器與 DGT4變送器 相比 ， 有什么不同 |
New cutting-edge processor, able to process up to 2600 weight readings per second. The high speed allows an extremely accurate weight filtering even with weighing times in the order of milliseconds.
New cell feed circuit for greater weighing stability.
Power supply circuit with protections, specific for industrial environments.
Removable terminal blocks to simplify wiring in the electrical panel.
Frontal micro-USB communication port for configuration, diagnostics and data backup.

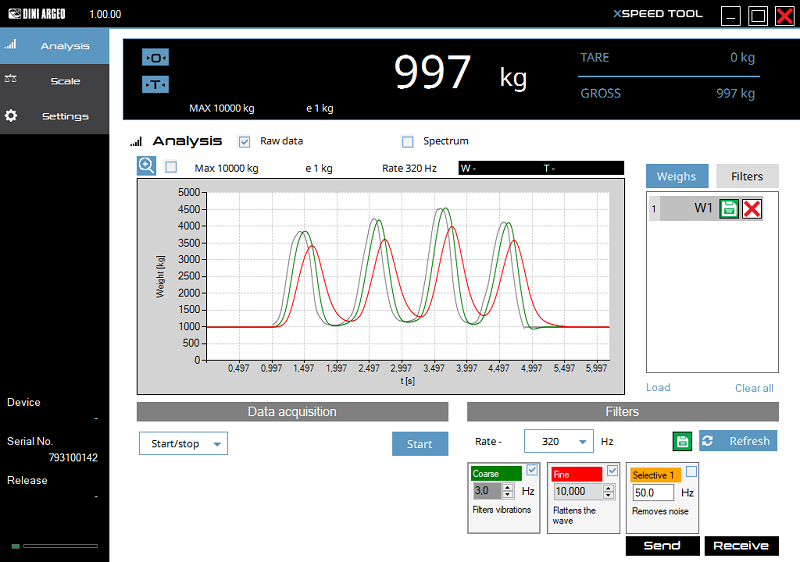

XSPEED TOOL: New PC software with oscilloscope function for system diagnostics and weighing filter optimization.
14.2 mm display.
New configuration menu to simplify calibration and configuration.
RS485 communication port always available on all versions.
Up to 120 fieldbus updates per second.
| 板載網絡服務器 |
集成的 WEB SERVER 允許從以太網網絡對重量變送器進行完整的診斷、校準和遠程配置
。僅適用于 PROFINET
、ETHERNET/IP 和 MODBUS TCP/IP 型號的DGT4X變送器。PC XSPEED 工具軟件 PC 的特定程序
，旨在提高任何稱重系統的性能。定制稱重過濾器，提高靜態和動態應用中稱重的速度和準確性
。用于識別機械干擾和振動的圖形稱重分析
。
DGT4X變送器產品特點 Power supply: 12-24Vdc
Converter: A/D 24 bit with 4 channel
Max scale number: 4
Load cells connection: 4 or 6 wires (with sense)
Operating modes:
- Digital junction box
- Multi-scale transmitter
- Single-scale transmitter
Conversion rate: up to 3200 conv./sec
Selectable sampling rate: up to 2600 conv./sec
Fieldbus update rate: up to 120 Hz
Displaying: up to 1.000.000d
Signal sensitivity: 0,03 μV/d (0,3 μV/e)
Resolution: 3.000.000 counts
Linearization: up to 8 points
Connectable load cells: up to 16 350 Ω cells
Fieldbus: Profibus, Profinet, EthernetIP, EtherCAT, EthernetIP, CANopen, DeviceNet, Modbus, TCP/IP.
Serial ports:
- 1 Micro-USB port (device) for PC configuration with "Dinitools?" and "XSpeed Tool".
- 1 RS485 port
- 1 RS232 port (Mod. DGT4X / DGT4XAN)
Analog output: 16 bit (DGT4XAN Model) 4-20mA or 0-10Vdc.
Digital outputs: n. 2 configurable OUTPUTS
Digital inputs: n. 2 configurable INPUTS
Certifications:
- OIML R76 (10000e or 3000 + 3000e) / R51 / R61 MID
- UL Listed (upon request)
- EU Type Examination Certificate (45501:2015)
- NMI S788 certificate
Case: ABS, for Din bar (106 x 56 x 118 mm)
Calibration:
- Theoretical (mV\V)
- With sample weights
- Remotely by WEB SERVER
- From the keyboard
- From PC with "Dinitools"
Keyboard functions:
Zeroing, Tare, Function mode, Manual data printing/sending, ON/Stand-by
Program functions:
Setpoint, High resolution, Peak, Alibi Memory, Unit of measure conversion, Unbalancing alarm, Broken load cell exclusion
Keyboard: mechanical with 5 keys
Display: 14,2mm red LED
UPON REQUEST UL certified version
Available versionsCode Description DGT4X High speed weight transmitter for DIN bar with 4 channels, 2 IN and 2 OUT. 5-key keypad, LED display. DGT4XAN High speed weight transmitter for DIN bar with 4 channels , 2 IN, 2 OUT, analogue output. 5-key keypad, LED display. DGT4XPRONET High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and PROFINET port. 5-key keypad, LED display. DGT4XPB High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and Profibus port. 5-key keypad, LED display. DGT4XETHCAT High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and EtherCAT port. 5-key keypad, LED display. DGT4XETHIP High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and EthernetIP port. 5-key keypad, LED display. DGT4XCANOP High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and CANopen port. 5-key keypad, LED display. DGT4XDEVNET High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and DeviceNet port. 5-key keypad, LED display. DGT4XMODTCP High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and MODBUS TCP/IP port. 5-key keypad, LED display. Approval for sale to third partiesCode Description
KCEM Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator. PC SoftwaresCode Description
XSPEED "XSPEED" PC software with oscilloscope function for system diagnostics and weighing filter optimization. Specific for DGT4X. Printers/LabellersCode Description
TPRP (S1) Panel thermal printer. Fitted with connection cable, 5Vdc power supply (power adapter not included).
TPRPCAL 5Vdc power supply unit. Clock Calendar / Alibi Memory for type-approved communicationCode Description
ALMEM-1 (S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).
DFCLK (S1) Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable). Power supplier for DIN barCode Description
MDR2012 12Vdc power suppliy unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S.
DR1512 12Vdc power supplier for DIN bar. 110/240Vac input. ABS boxes for wall mountingCode Description
BOX2121S Wall IP65 box with transparent door. Dimensions 210x210x100 mm, equipped with 2 cable glands. Suitable for DGT1 and DGT4 series instruments. Options for ATEX versionCode Description
ZBA1S Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
KZBA-1 ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 4 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135°C Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT). KMB4-1 Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C ≤ Ta ≤ +40°C) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C ≤ Ta ≤ +40°C) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).
DCATEXMB4 ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125°C Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).
JB4QA ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
JB4QAI ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
EXCB6 (S6) Shielded, blue, 6x0,22mm2 cable, for EX i (2GD) applications. €/m Other optionsCode Description UMAN Printed user manual (Free download from the website). TECMAN Printed technical manual (Free download from the website). TECSUP Technical assistance by telephone upon request. ECEMDOC Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €. All the specifications and images can be subject to variations and upgrades without prior notice.
